II. Flight Mechanics and Flight Testing

(1) Lateral-Directional Self-Stability Design for Flying Wing Aircraft

Due to the lack of vertical stabilizers, flying wing aircraft exhibit significantly lower directional stability

than conventional aircraft. Currently, general engineering solutions to this problem include two

categories: 1. Sideslip angle feedback via automatic control systems (e.g., B-2, X-47B); 2. Adding

wingtip stabilizers (e.g., X-48B). In our research on flying wing aircraft design, our group has proposed

a third method distinct from the previous two: lateral-directional self-stability design. This design

targets the convergence characteristics of the primary lateral-directional modes and employs an

inverse design of the dihedral distribution across the spanwise sections of the aircraft. By adjusting the

values of lateral-directional stability derivatives, passive dynamic stability is achieved within the design

speed range without relying on active control. Meanwhile, because dihedral adjustment does not affect

the longitudinal aerodynamic coefficients when there is no sideslip, self-stability design does not

significantly impact the aircraft's lift-to-drag performance.

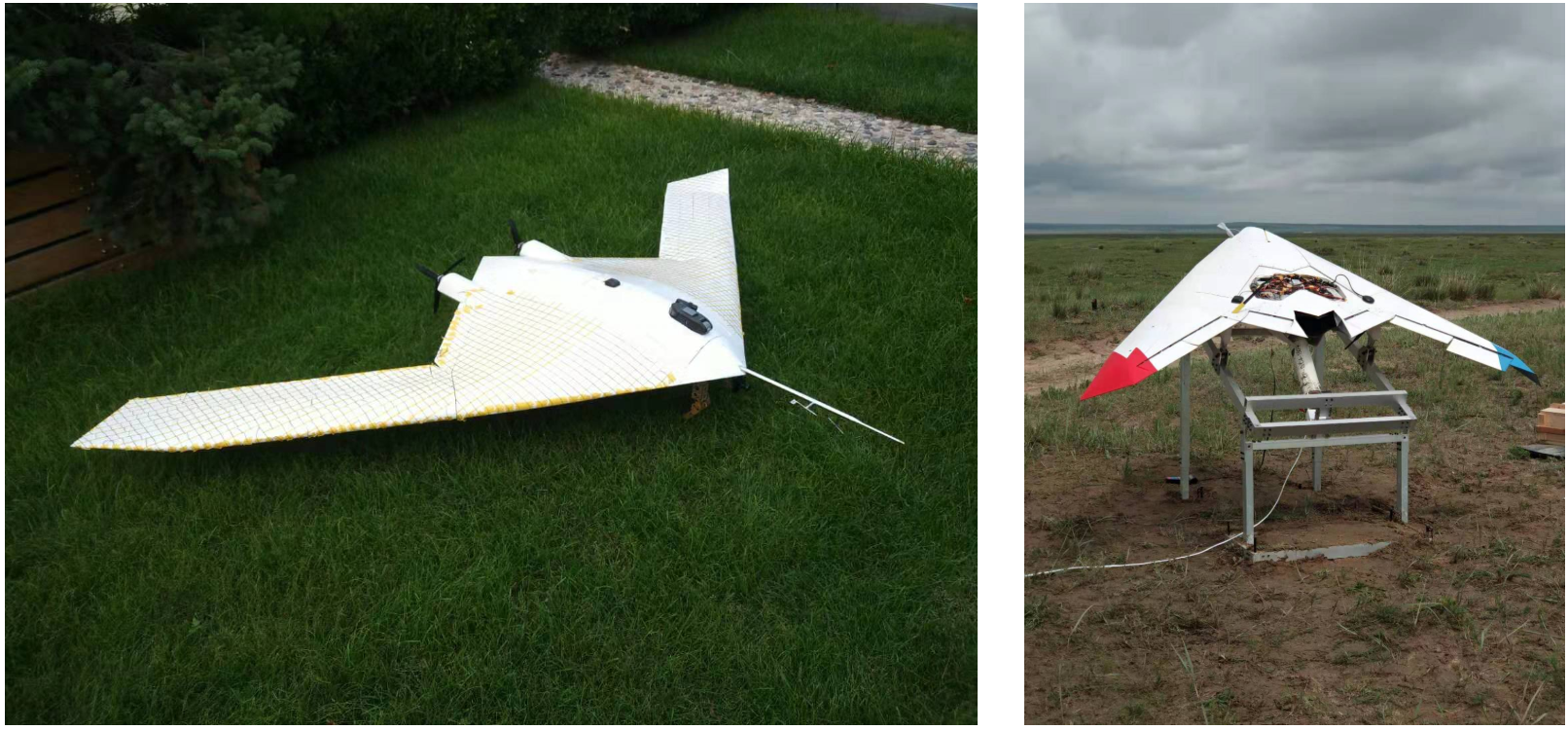

This technology has been validated through tests on flight platforms of various sizes. During this

process, new aerodynamic and stability/control issues for flying wing aircraft were discovered, and

related research is continuously advancing.

Publications

[1] Song L, Yang H, Zhang Y, et al. Dihedral influence on lateral–directional dynamic stability on large

aspect ratio tailless flying wing aircraft [J]. Chinese Journal of Aeronautics, 2014, 27(5): 1149-1155.

[2] SONG Lei, YANG Hua, YAN Xufeng, HUANG Jun. Lateral-directional Dynamic Stability Design Method

for Flying Wing without Augmentation [J]. Systems Engineering and Electronics, 2015, 37(11): 2561-2565.

[3] Song L, Yang H, Xie J, et al. Method for Improving the Natural Lateral-Directional Stability of Flying

Wings [J]. Journal of Aerospace Engineering, 2016, 29(5): 06016003.

[4] SONG Lei. Conceptual Design Optimization of Flying-wing Aircraft [D]. Beihang University, 2015.

—————————————————————————————————————————————

(2) Flight Test Research on Dutch Roll Mode Convergence under Zero

Directional Static Stability

It is generally believed that directional static stability (weathercock stability) is a necessary condition

for achieving Dutch roll mode convergence. This study designed an interesting set of experiments to

verify that an aircraft can achieve lateral-directional Dutch roll dynamic stability even in the absence

of directional static stability. First, the possibility of Dutch roll mode convergence without directional

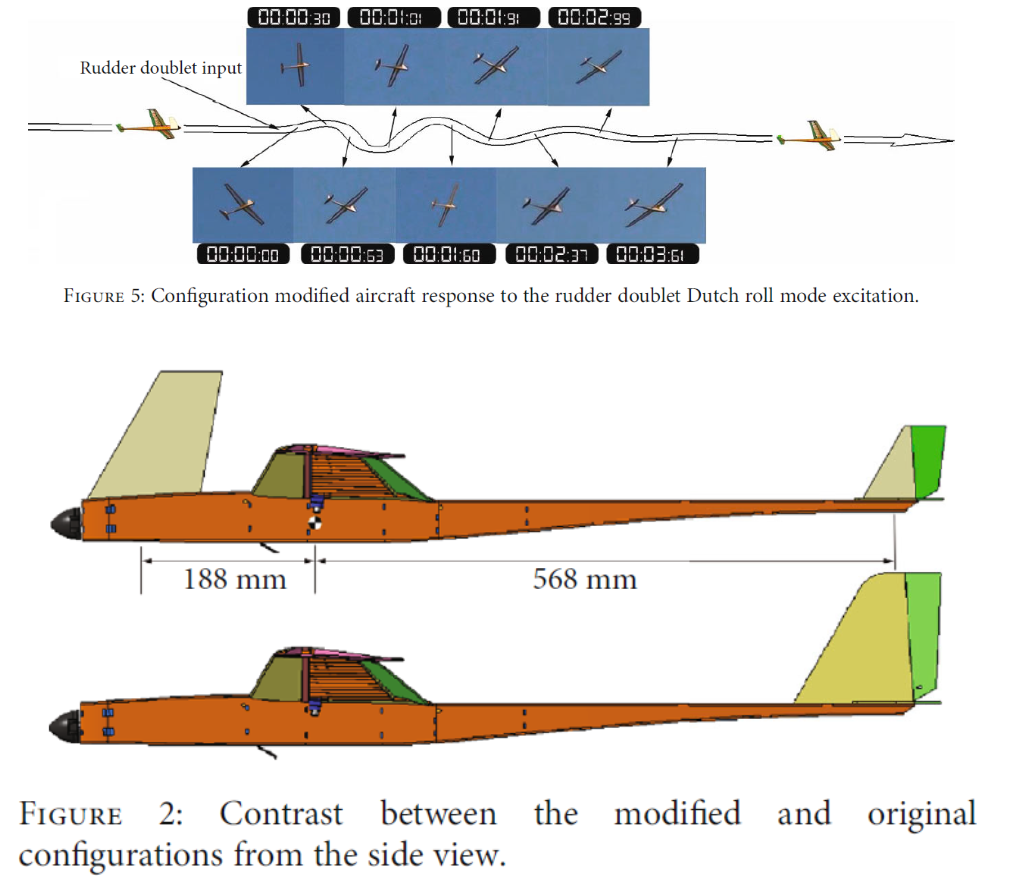

static stability was proven using purely mathematical methods. Subsequently, an RC glider was chosen

as the research object. By reducing the vertical tail area and adding a vertical stabilizer forward of the

center of gravity, the directional static stability was adjusted to zero while maintaining a constant

side-force stability (Cy_beta). After numerical calculations proved that the aircraft could achieve Dutch

roll convergence, actual flight tests were conducted. The flight test results confirmed the theoretical

analysis but also revealed new changes in the aircraft's stability and control characteristics after

modification. These results indicate that, on one hand, the method of emphasizing only directional

static stability during Dutch roll mode analysis is incomplete, and on the other hand, the impact of

directional static stability on other stability and control characteristics beyond the Dutch roll mode

warrants further study.

Publications

[1] Fu J, Huang J, Song L, Yang D. Experimental Study of Aircraft Achieving Dutch Roll Mode Stability

without Weathercock Stability. International Journal of Aerospace Engineering. 2020;2020.

[2] Fu J, Huang J, Wang L B, et al.Oscillation mode flight data analysis based on FFT [J]. Aircraft

Engineering and Aerospace Technology, 2018, 91(1): 157-162.

—————————————————————————————————————————————

(3) Sub-scale Flight Testing and Flight Data Measurement

Publications

[1] Hua Y, Lei S, Cheng L, et al. Study on powered-parafoil longitudinal flight performance with a fast

estimation model [J]. Journal of Aircraft, 2013, 50(5): 1660-1668.

[2] YANG Hua, SONG Lei, WANG Wenjian, et al. Longitudinal Four-Degree-of-Freedom Dynamic

Simulation of Powered Parafoil [J]. Journal of Beihang University, 2014 (11): 1615-1622.

[3] YANG Hua, SONG Lei, HUANG Jun. Research on Gliding Performance of Ram-Air Parafoil [J]. Flight

Dynamics, 2014 (6): 510-513.

[4] Hua Y, Lei S, Weifang C. Research on parafoil stability using a rapid estimate model [J]. Chinese

Journal of Aeronautics, 2017, 30(5): 1670-1680.

[1] Song L, Yang H, Yan X, et al. A study of instability in a miniature flying-wing aircraft in high-speed taxi

[J]. Chinese Journal of Aeronautics, 2015, 28(3): 749-756.

[2] Fanxing Li, Gang Lin, Xiaoqiang Lu, and Lei Song. Enhancement of Insensitivity for Pitot-Static Probe

by Static-Pressure Orifices Optimization [J]. IEEE Transactions on Instrumentation and Measurement 71

(2022): 1-8.

[3] Li F, Song L, Xie J, et al.Preliminary Layout Design Method of Flush Airdata Sensing System [J].

IEEE Transactions on Aerospace and Electronic Systems, 2024, 60(6): 9221-9230.

Related Invention Patents

—————————————————————————————————————————————

(4) Flight Simulators for Aircraft Design Education

The team collectively developed the flight simulators for aircraft design education at the "Digital

Collaborative Innovation Center for Aircraft" on the Shahe Campus, including one transport aircraft

simulator and two fighter aircraft simulators. All simulators utilize a MATLAB/Simulink-driven

underlying architecture for aerodynamic and flight dynamics solver development. The visual software

is based on secondary development of popular modern flight simulation software, achieving

bidirectional data communication with Simulink. Instruments were developed using rapid

programming tools to allow students to modify them based on course learning and research needs.

In terms of hardware, the transport simulator employs a multi-monitor display solution to balance wide

field-of-view with high-resolution requirements. The cockpit layout references modern fly-by-wire

airliners, with most panels using touchscreen control to simulate various switch effects, while also

facilitating rapid modifications to the cockpit interface. The fighter simulators utilize Mixed Reality (MR)

headsets to integrate virtual external scenery with simulated internal cockpit views. The cockpit layout

references modern 4th-generation fighters based on large-screen touch panels. Both types of simulators

feature programmable active stick force control systems, which allow for easy force-feel programming

to implement speed-dependent force gradients, as well as stick pusher and stick shaker effects.

The simulators are currently in use at the "New Generation Fully Digital Aircraft Science and Education

Collaborative Innovation Center" located in Building 8, Room B119, Shahe Campus.

Promotional Video: https://www.bilibili.com/video/BV1wv4y1c7Qx
